Local Docker-compose Usage

Install docker-compose, refer to Official Documentation

How to install docker-compose on Linux, Mac, Windows, click to expand and view

Install on Linux

# 1.1 Run this command to download the current stable version of Docker Compose
sudo curl -L "https://github.com/docker/compose/releases/download/v2.20.2/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose
# 1.2 Apply executable permissions to the binary file
sudo chmod +x /usr/local/bin/docker-compose

Install using Python pip

pip3 install docker-compose -i https://pypi.tuna.tsinghua.edu.cn/simple

Using Docker Desktop

• Windows: https://hub.docker.com/editions/community/docker-ce-desktop-windows
• Mac: https://hub.docker.com/editions/community/docker-ce-desktop-mac/

Clone and enter this project using Git

git clone https://github.com/flipped-aurora/gin-vue-admin.git && cd gin-vue-admin

Use docker-compose up to start the project with one command

# Use docker-compose to start four containers
docker-compose -f deploy/docker-compose/docker-compose.yaml up
# If you modified some configuration options, you can use this command to repackage images
docker-compose -f deploy/docker-compose/docker-compose.yaml up --build
# Use docker-compose to start in background
docker-compose -f deploy/docker-compose/docker-compose.yaml up -d
# Use docker-compose to repackage images and start in background
docker-compose -f deploy/docker-compose/docker-compose.yaml up --build -d
# After all services start successfully, use this command line to clear none images
docker system prune

• Web project preview http://127.0.0.1:8000
• Swagger documentation http://127.0.0.1:8888/swagger/index.html

Notes

Issues to note when using docker-compose for experience

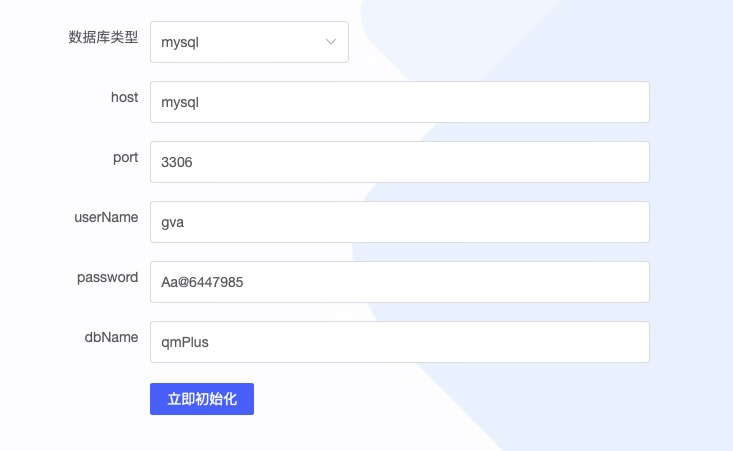

1. In the initialization data page

• IP please fill in the IP from line 56 of docker-compose.yaml, or directly use mysql, as shown below

• Database is qmPlus

• Port is 3306

• Username is gva

• Password is the database password defined in line 52 of docker-compose.yaml

2. If server's 177.7.0.12 container internal IP is occupied, the places to modify are

• Line 42 of docker-compose.yaml replace 177.7.0.12 with your desired IP
• Line 20 of web/.docker-compose/nginx/conf.d/my.conf replace 177.7.0.12 with your desired IP

Issues to note when using docker-compose for deployment

1. docker-compose uses a custom docker network

   •   networks:
         network:
           ipam:
             driver: default
             config:
               - subnet: '177.7.0.0/16'

   • Subnet address, default gateway is 177.7.0.1 (docker-compose V2 needs to write, V3 doesn't), see official documentation for details

   • Default network name is gin-vue-admin_network, default is bridge mode

   • If you modify the subnet, the ipv4_address of each service needs to be modified, and the server IP in line 20 of web/.docker-compose/nginx/conf.d/my.conf also needs to be modified

2. server/Dockerfile uses multi-stage build, which was introduced after docker 17.05, so the installed docker version needs to be higher than 17.05

3. Please use mysql database installed on server disk

   • Avoid using mysql in docker containers, there may be write issues, IO is lower than host due to docker's persistence mechanism issues.

4. When deploying using this project's docker-compose, please modify the corresponding nginx configuration, mysql configuration, networks configuration, redis configuration in docker-compose.yaml as needed.
