Project Introduction

Gin-Vue-Admin is a full-stack management framework designed for rapid development of web applications with a complete frontend-backend separation architecture. Built on Go (Gin) and Vue.js, it provides a comprehensive development platform with automated code generation, AI-assisted development, and enterprise-grade security features.

🚀 Quick Links

GitHub: https://github.com/flipped-aurora/gin-vue-admin
GitCode: https://gitCode.com/flipped-aurora/gin-vue-admin
Gitee: https://gitee.com/pixelmax/gin-vue-admin
Online Demo: http://demo.gin-vue-admin.com/
- Username: admin
- Password: 123456

🎯 Project Positioning

Gin-Vue-Admin serves as a foundational framework for enterprise management systems, focusing on providing developers with:

🚀 Rapid Development: AutoCode generation system that can generate complete CRUD functionality in 1 minute
🔒 Enterprise Security: Dual security guarantee with JWT authentication + Casbin RBAC authorization
🔧 High Flexibility: Dynamic routing, menu management, and API configuration
📚 Complete Documentation: Automatic Swagger API documentation generation
☁️ Cloud Native: Multi-cloud file storage support (Qiniu Cloud, Alibaba Cloud, AWS S3)
🗄️ Multi-Database: Support for MySQL, PostgreSQL, SQLite, and MSSQL

This system is primarily targeted at developers building management backends, content management systems, and business applications requiring user management and permission control.

🛠️ Technology Stack

Environment Requirements

Node.js: ≥ 18.16.2
Go: ≥ 1.22
MySQL: ≥ 5.7 (engine must be InnoDB)
Git: Version control tool

It is recommended to use Docker to create MySQL database to ensure environment consistency

Frontend Technology Stack

Technology	Version	Description
Vue.js	3.3.4	Progressive JavaScript framework
Element Plus	2.3.8	Vue 3 UI component library
Pinia	Latest	State management (replacement for Vuex)
Vue Router	Latest	SPA routing and dynamic routing
Vite	Latest	Build tool and development server

Backend Technology Stack

Technology	Version	Description
Go	≥ 1.22	Programming language
Gin	1.9.1	High-performance web framework
GORM	1.25.2	ORM library with automatic migration support
Casbin	Latest	Access control library (RBAC)

Database Support

Database	Version Requirement	Description
MySQL	≥ 5.7	Primary database, InnoDB engine
PostgreSQL	≥ 9.6	Relational database alternative
SQLite	Latest	Embedded database option
MS SQL Server	Latest	Microsoft database support
Oracle	Latest	Enterprise database support

Cache and Storage

Redis: Cache and session management
Qiniu Cloud: Object storage service
Alibaba Cloud OSS: Alibaba Cloud storage
AWS S3: Amazon Web Services storage

Development Tools

Swagger: Automatic API documentation generation
Viper: Configuration management
Zap: Structured logging
fsnotify: File system notifications

AI Integration

LLM APIs: AI-assisted code generation
MCP Protocol: Model Context Protocol for AI agents

🌟 Core Features

🔐 Security Authentication System

JWT Authentication: Stateless user identity verification
Casbin RBAC: Role-based access control
Multi-point Login Control: Support for single sign-on restrictions
API Permission Management: Fine-grained interface access control

👥 User Permission Management

User Management: System administrators assign user roles and permissions
Role Management: Create permission control objects, support API, menu, and button permission allocation
Menu Management: Dynamic menu configuration, different menus for different roles
Button Permissions: Page-level operation permission control

🚀 Rapid Development Tools

AutoCode Generator: Code generator that creates complete CRUD functionality in 1 minute
Form Generator: Visual form design based on Variant Form
Automatic API Documentation: Swagger automatic API documentation generation
RESTful Examples: Standard RESTful API design reference

📁 File Storage System

Multi-cloud Storage: Support for local, Qiniu Cloud, Alibaba Cloud, and Tencent Cloud storage
Chunked Upload: Large file chunked upload functionality
Resume Upload: Continue uploading after file upload interruption
File Management: Complete file upload and download management

🔧 System Management

Configuration Management: Frontend visual configuration file modification
Log Management: System operation log recording and query
Monitoring Dashboard: System runtime status monitoring
Data Dictionary: System data dictionary management

🎨 User Interface

Rich Text Editor: Built-in MarkDown editor
Conditional Search: Advanced search functionality examples
Data Import/Export: Excel data processing functionality
Responsive Design: Adapts to multiple device screens

🔌 Plugin Ecosystem

Plugin Center
NEW
: Go plugin center based on GVA design
WeChat Integration: WeChat payment, login and other functional plugins
K8s Operations: Kubernetes-related operation plugins
Third-party Login: Support for multiple third-party login methods

How to Contribute

Before participating in any form, please read the development guide first. If you have any opinions or suggestions, you are welcome to inform us by creating Issues or PRs. You can also choose the gva official discussion group

🧁

It is strongly recommended to read 《How to Ask Questions the Smart Way》 and 《How to Ask Questions to Open Source Communities》. Better questions are more likely to get help.

🏗️ System Architecture

Overall Architecture Design

Gin-Vue-Admin adopts a modern frontend-backend separation architecture, ensuring system maintainability and scalability through clear layered design:

┌─────────────────┐    ┌─────────────────┐    ┌─────────────────┐
│  Frontend (Vue) │    │  Backend (Go)   │    │   Data Layer    │
├─────────────────┤    ├─────────────────┤    ├─────────────────┤
│ • Vue 3 + Vite  │    │ • Gin Framework │    │ • MySQL/PG/...  │
│ • Element Plus  │◄──►│ • JWT + Casbin  │◄──►│ • Redis Cache   │
│ • Pinia Store   │    │ • GORM ORM      │    │ • File Storage  │
│ • Vue Router    │    │ • Swagger Docs  │    │ • Cloud Storage │
└─────────────────┘    └─────────────────┘    └─────────────────┘

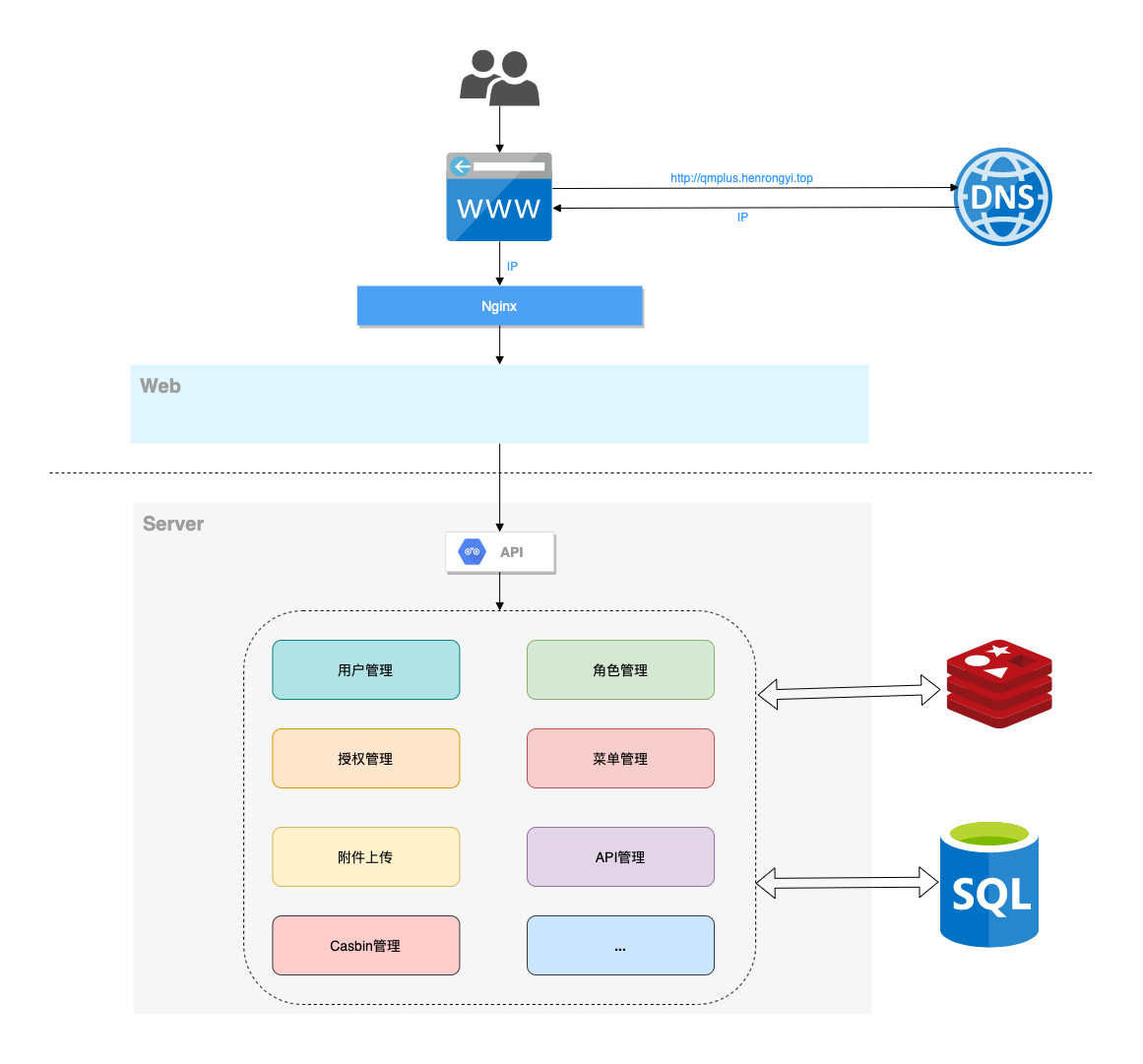

System Architecture Diagram

Core Architecture Components

🎨 Frontend Architecture (Vue.js + Vite)

Application Startup: main.js - Application bootstrap
Routing System: Vue Router - Dynamic routing management
State Management: Pinia Stores - Global state management
Layout System: Header, Aside, Tabs - Page layout components
Permission Control: Menu permissions, API permissions, button permissions
Component Library: Upload, Select, Export - Common business components

⚙️ Backend Architecture (Go + Gin)

Service Startup: main.go - Server bootstrap program
Configuration System: core.Viper - Configuration management system
Authentication Middleware: middleware.JWT - JWT identity verification
Authorization Middleware: middleware.Casbin - Permission control processing
API Handlers: api.v1 - REST API handlers
Business Services: service.* - Business logic services
Code Generation: service.AutoCode - Automatic code generation engine

🗄️ Data Architecture

Main Database: global.GVA_DB - Primary data storage
Cache System: global.GVA_REDIS - Cache and sessions
File Storage: Local/cloud object storage services
Permission Storage: system.CasbinRule - Policy storage

Authentication and Authorization Flow

mermaid

sequenceDiagram
    participant U as User
    participant F as Frontend
    participant A as API Gateway
    participant S as Business Service
    participant D as Database

    U->>F: Login Request
    F->>A: POST /base/login
    A->>S: Verify User Credentials
    S->>D: Query User Information
    D-->>S: Return User Data
    S->>A: Generate JWT Token
    A-->>F: Return Token
    F->>F: Store Token

    U->>F: Access Protected Resource
    F->>A: Request + JWT Header
    A->>A: JWT Verification
    A->>S: Casbin Permission Check
    S-->>A: Permission Result
    A-->>F: Return Data/Deny Access

Frontend Detailed Design Diagram

Provided by: baobeisuper

Frontend Detailed Design Diagram

Initialization Process

The initialization sequence during system startup ensures proper loading of all components:

Configuration Initialization: core.Viper - Load configuration files
Log Initialization: core.Zap - Set up logging system
Database Connection: initialize.Gorm - Establish database connection
Data Table Registration: initialize.RegisterTables - Register data models
Redis Connection: initialize.Redis - Establish cache connection
Route Initialization: initialize.Routers - Set up API routes
Service Startup: core.RunWindowsServer - Start HTTP service
